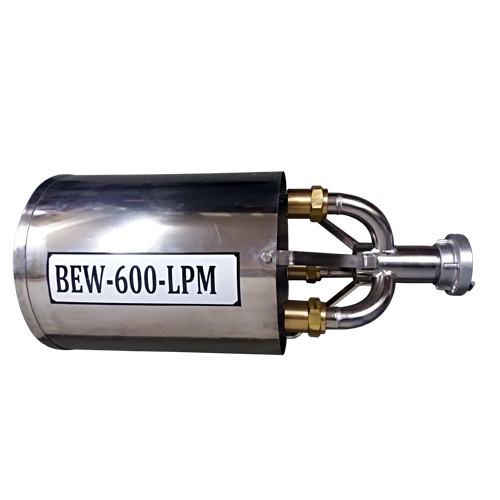

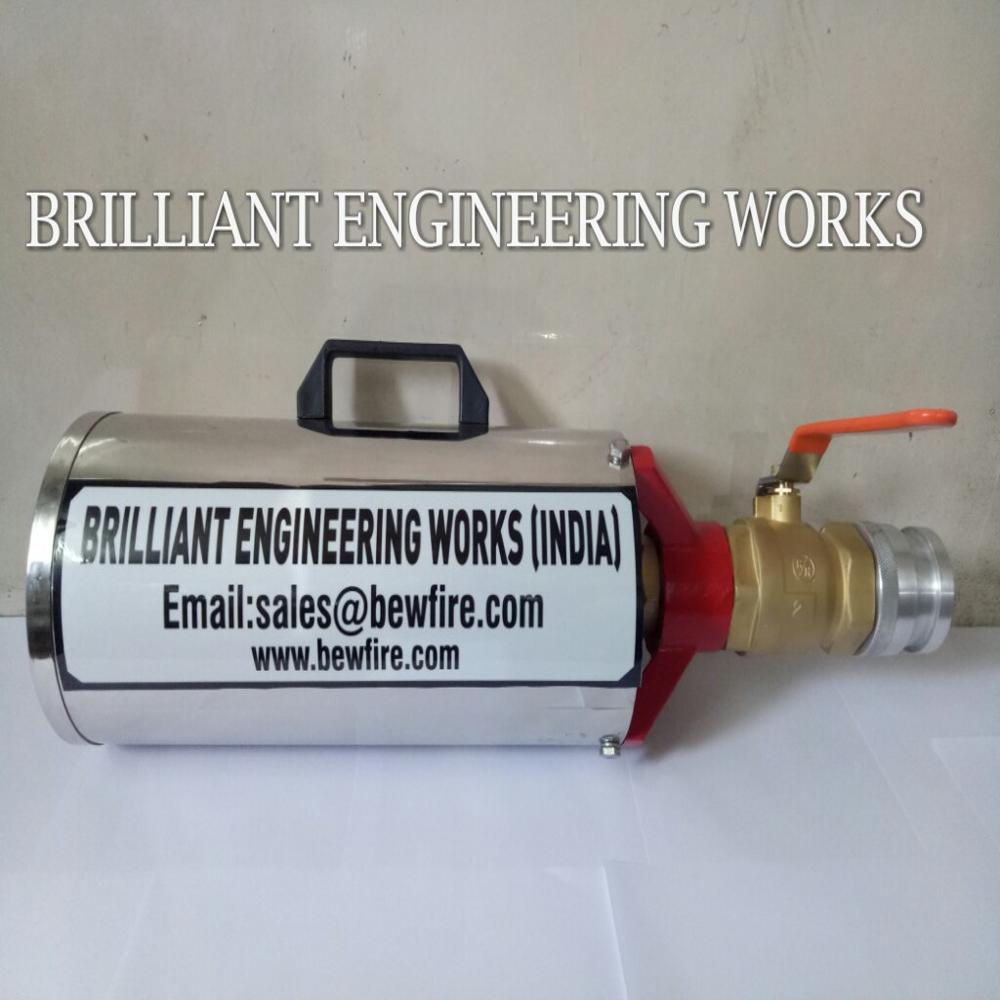

            Fixed Foam Bund Pourer

            Fixed Foam Bund Pourer
            Fixed Foam Bund Pourer
            Product Code : BEW/012
            Brand Name : BRILLIANT
            Product Description

            Being one of the distinguished manufacturers and suppliers of firefighting equipment and accessories, we offer high quality Fixed Foam Bund Pourer. It is used for pouring the foam onto the risk area and is ideal for tackling large flammable liquid spills, and fires in Tank dikes. Manufactured using the quality tested raw materials and advanced technology, the foam bund pourer is offered with high durability. To cater the needs of the clients, Fixed Foam Bund Pourer is available in different models and dimensions.

            Features:



            • Rust proof
            • High Strength
            • Good capacity









            Technical Specification :-

            Model

            BEW-600-LPM

            BEW-1200-LPM

            BEW-1800-LPM

            Nozzle Quantity

            3

            6

            9

            Dimension A

            590

            905

            920

            Dimension B

            302

            420

            520

            Dimension C

            382

            565

            648

            Inlet Flange/ Coupling size

            2 " BSP Male inlel/

            2 " BSP flange

            2 1/2" BSP Male /

            2 1/2" BSP flange

            3" BSP Male /

            3" BSP flange

            Pipework

            Stainless steel

            Nozzles

            Brass / Gunmetal Natural Finish

            Pourer Tube

            Stainless Steel

            Stainless Steel

            Stainless Steel

            Internals

            Stainless Steel

            Stainless Steel

            Stainless Steel

            Screws/Nuts/Washers

            Stainless Steel

            Stainless Steel

            Stainless Steel

            Approximate Weight

            8.5 kg

            16 kg

            24.5 kg

            K Factor

            380

            759

            1138

            Operating Pressure Range

            1.5 to3 bar

            1.5 to3 bar

            1 .5to3 bar

            Flow Rate @2.5 bar

            600L/Min

            1200L/Min

            1800 L/Min

            Typical Expansion Ratio at 3%

            25 to 36:1

            Or as per demand

            25 to 36:1

            Or as per demand

            25 to 36:1

            Or as per demand

            Typical Foam Output @ 2.5 bar at 3%

            24 M3/Min

            50 M3/Min

            70 M3/Min
