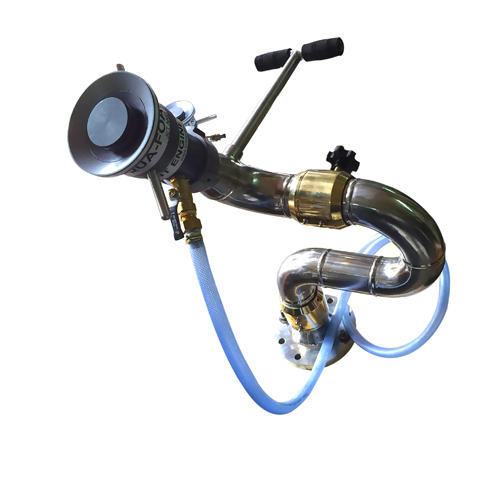

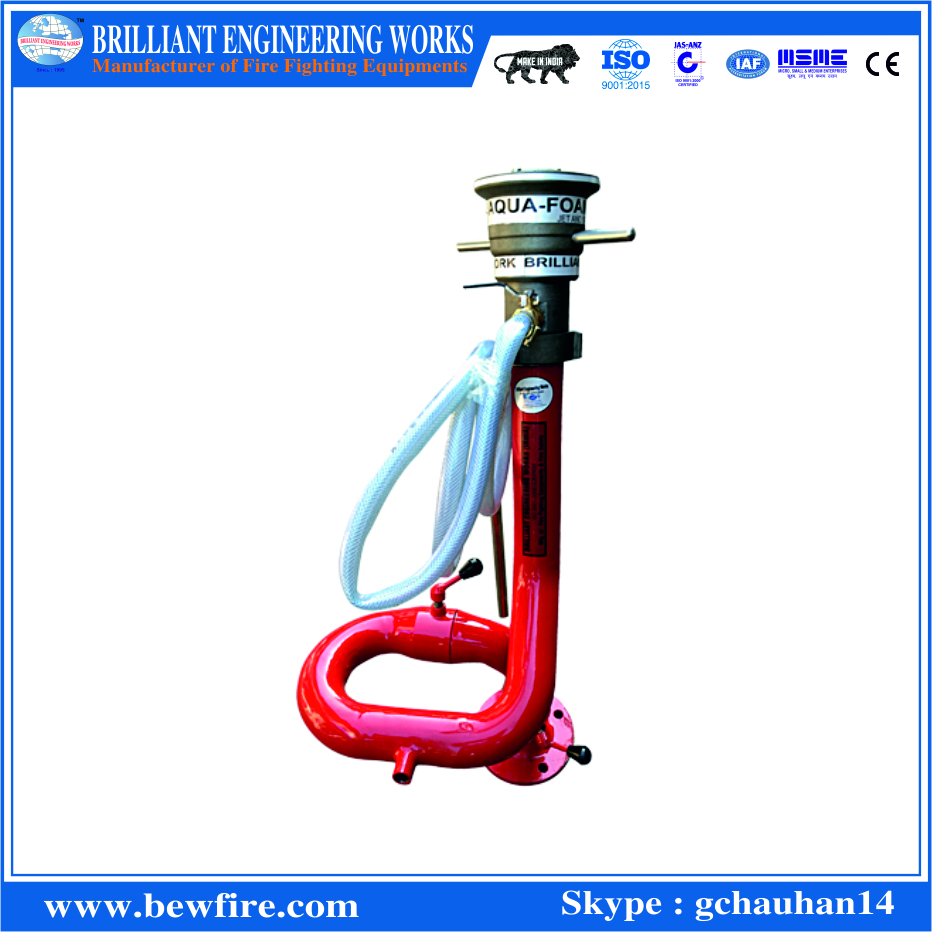

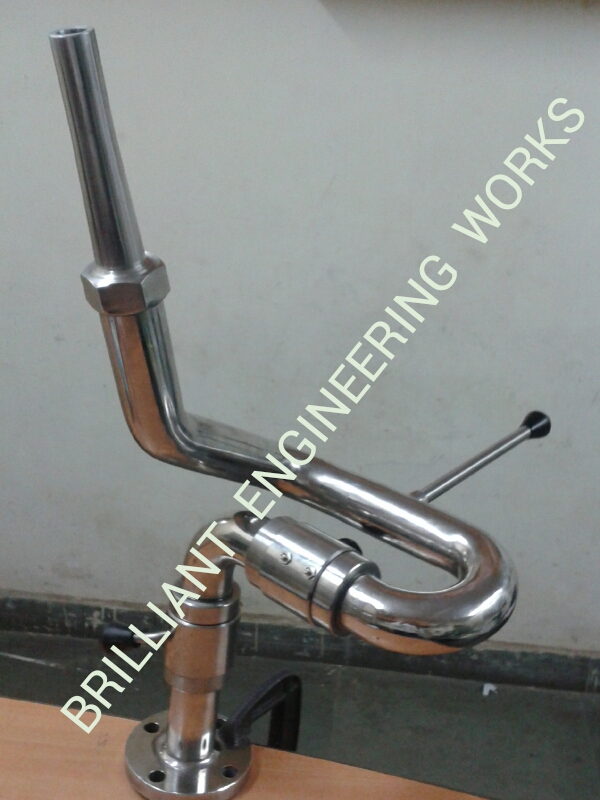

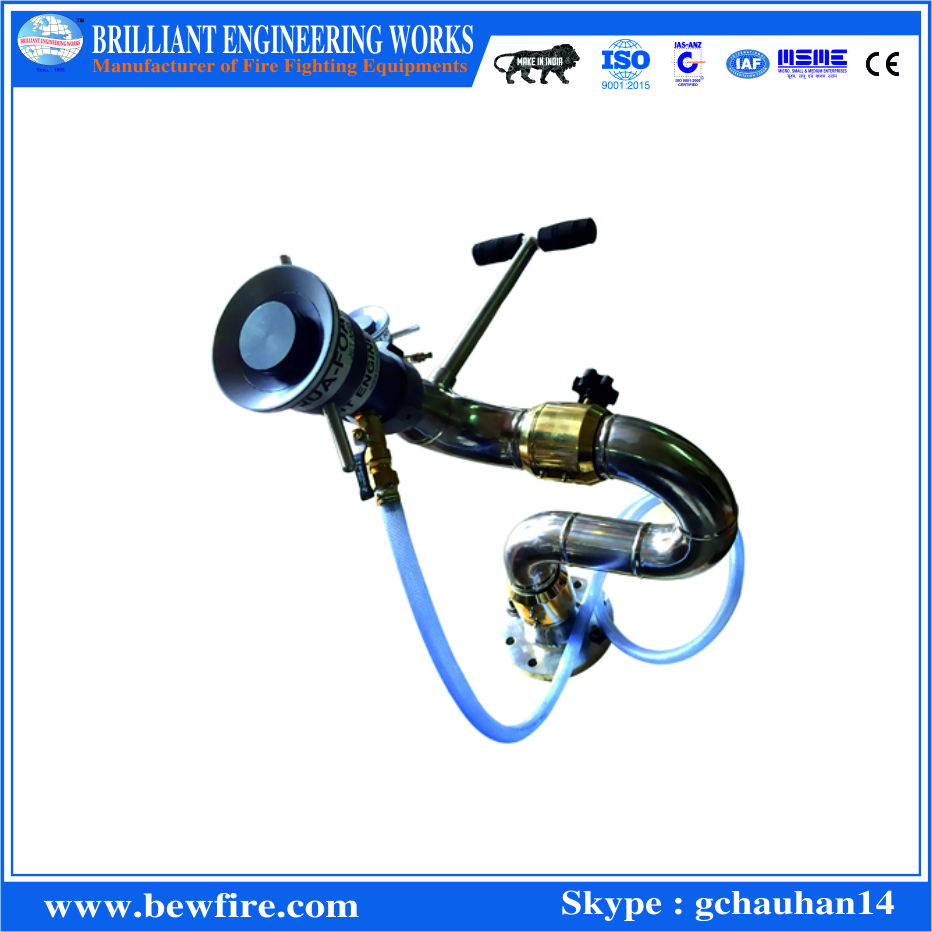

Fixed Water Monitor

MATERIALS

Body:

Stainless Steel

Seals:

PTFE Seals

Rotation sections:

Rotating machined bronze ball track with 140 set

stainless steel ball bearings per rotation section.

PERFORMANCE

Max. recommended

working pressure:

15 bar (217 lb/inx2)

Test pressure:

22.5 bar (326lb/in2)

Traverse:

360 continuous

Elevation:

from 75 above to 45 below horizontal

DIMENSIONS

Waterway:

80 mm

Mounting flange:

3 or 4 in A.S.A. or as per demand

Outlet connection:

2 B.S.P. male or as per demand

Maximum width:

490 mm

Maximum height:

700 mm

Maximum front to

back:

590 mm (without nozzle)

Weight:

25 kg without nozzle
