Mist System Quick L-Connector

Product Description

Specifications

Slip Lock Fittings(Quick Lock Fittings)
2:Application: Fog,Mist,Cooling System
3:Thread:3/8,10/24,12/24UNC
4.Diameter:9.52mm

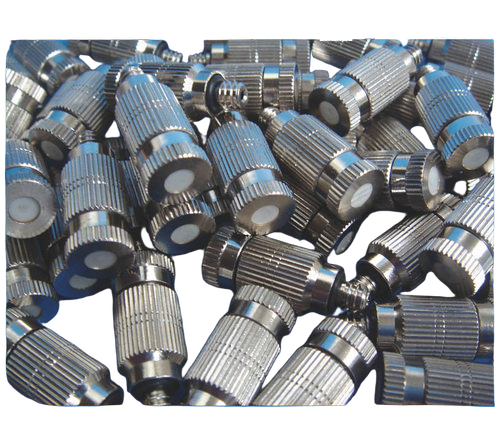

Mist nozzle (anti-drip):
1.Material available: Brass, Stainless steel, Brass plated Nickel
2.Inlet thread size: 10/24UNC, 12/24UNC, 3/16, 1/8 etc.
3.Spraying Orifice Size:0.08mm, 0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm

4.Capacity range: 0.0125L/min 0.240L/min
5.Pressure range: 20-100bar

Slip Lock Fittings

1.Slip Lock Single hole:

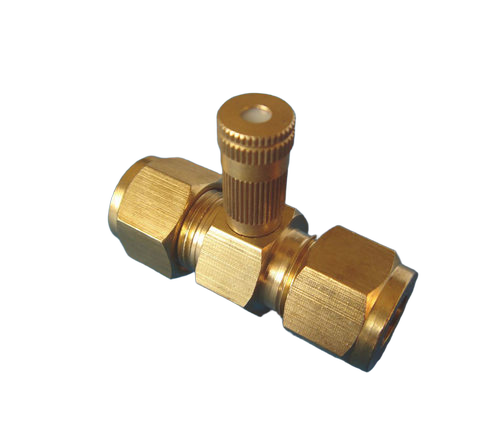

Quick coupling for tube 3/8 Single hole thread 10/24 orifice
Quick coupling for tube 1/2 Single hole thread 10/24 orifice
Slip Lock Double Holes
Slip Lock for tube 3/8
180 degree Double holes thread 10/24 orifice
Slip Lock for tube 1/2
180 degree Double holes thread 10/24 orifice

2.Slip Lock Tee Way:
Slip Lock for tube 3/8 / 3/8
Quick bushing for tube 3/8
Quick coupling for tube 1/2 / 1/2
Quick bushing for tube 1/2

3.Slip Lock End:
Slip Lock for tube 3/8 End plug
Slip Lock for tube 1/2 End plug

4. Flexible Tubing:
Nylon tubing of OD 3/8(9.52mm), 120bar/1800PSI
PE tubing of OD 3/8(9.52mm), 70bar/1000PSI

5. Water filter:
5,10 and 20 water filters for selection.

6. Clamp:
clamp for 3/8 tubing or clamp for nozzle connector

7. Slip Lock Elbow:
90 degree elbow for the 3/8 tubing

8. Cutter:
Special hose tubing cutter

9. Slip Lock Ball valve:
3/8 high pressure ball valve

10. Solenoid Valve:
high pressure solenoid valve, normally open and close type, 1000PSI

11. Fog Machine/pump:
1LPM to 25LPM, 110V/220V/380V, 50HZ/60HZ, single/three-phase voltage
