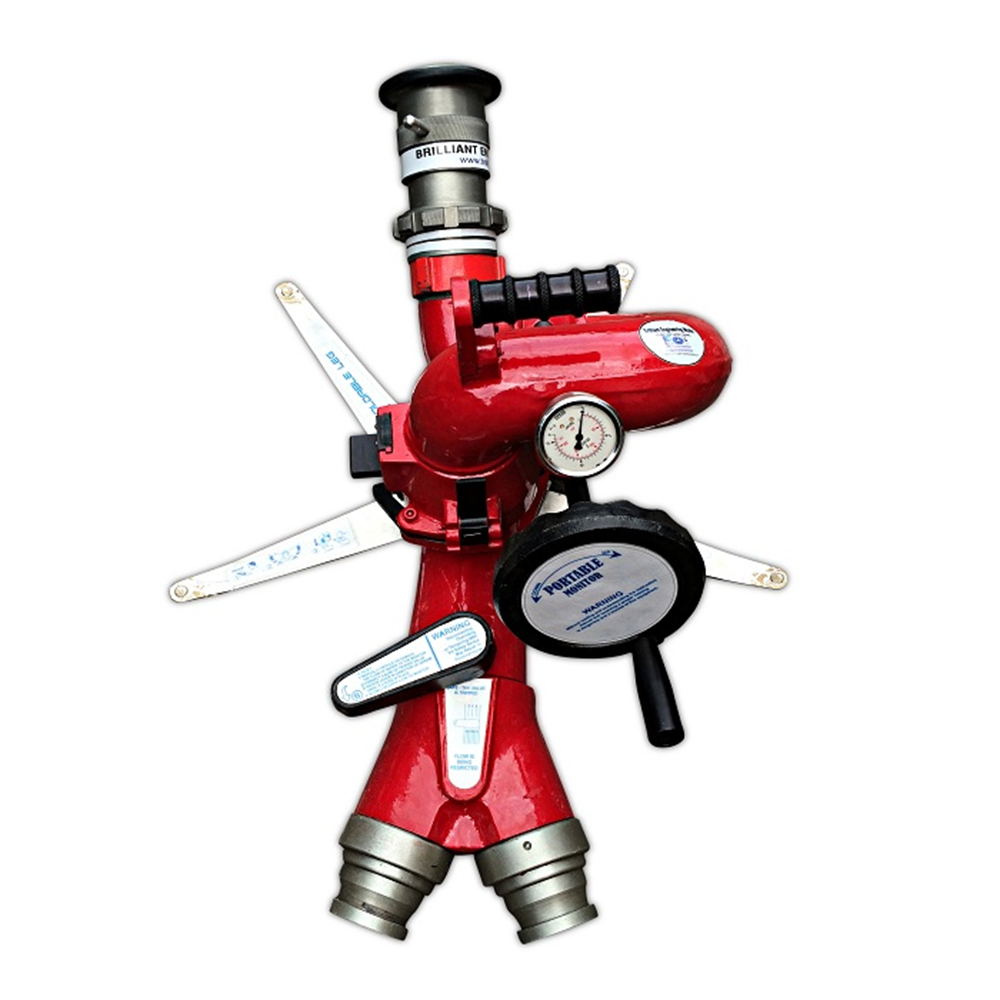

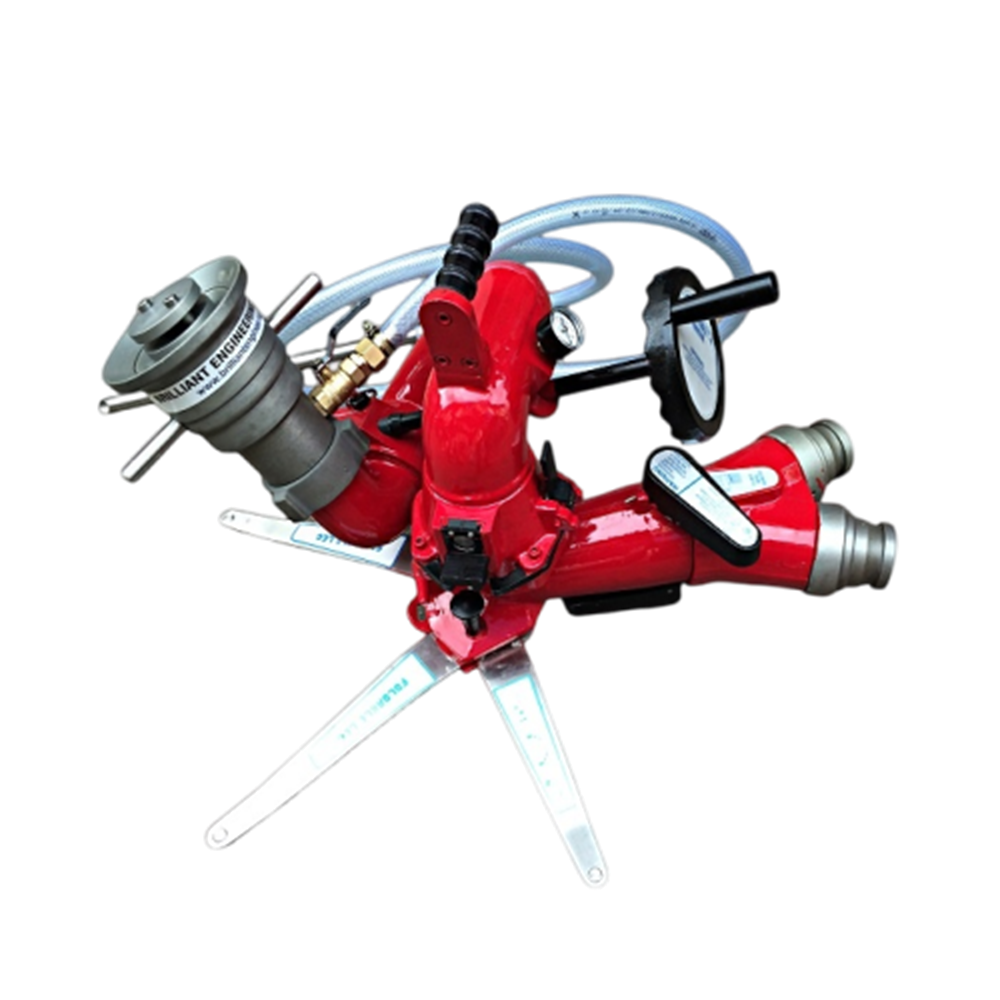

            Portable Ground Water Monitor With Stackable Nozzle

            Portable Ground Water Monitor With Stackable Nozzle
            Portable Ground Water Monitor With Stackable Nozzle
            Product Code : BEW/855
            Brand Name : BRILLIANT
            Product Description

            Monitor

            Portable Water Monitor 1000-2000 , LPM,7kg.cm2

            Capacity (Flow rate)

            1000 TO 3500 LPM @ 7 kg/cm2

            Inlet connection

            Double Inlet. 2 X 63 MM Male INST. With NRV . (Non return valve)

            Vertical Rotation

            Enclosed hand wheel driven worm gear.

            30.0 degree to 90.0 degree

            above

            Horizontal Rotation

            Above 180 degree . manual rotation

            Stand

            Foldable ground base with hardened steel spikes

            Nozzle Flow

            1000-2000 LPM@ 7kg cm2. Controlled with flow , Controlled Ring. Manually,

            To automatically adjust change in Pressure and maintain throw.

            Horizontal Throw @30??

            45 MTR @ 7 kg.cm2

            Vertical Throw

            25 MTR. @ 7kg.cm2 .

            Spray Angle

            120 degree

            Special Feature

            Able to dismantle in two parts for easy Carrying

            Material of construction

            Swivel joints assy. upper elbow assembly , Nozzle, Barrel pipe hard anodized Alloy Aluminum parts hard anodized

            Finish

            Powder coating

            Fire red powder coating all part inside and out side and water way for corrosion protection.
