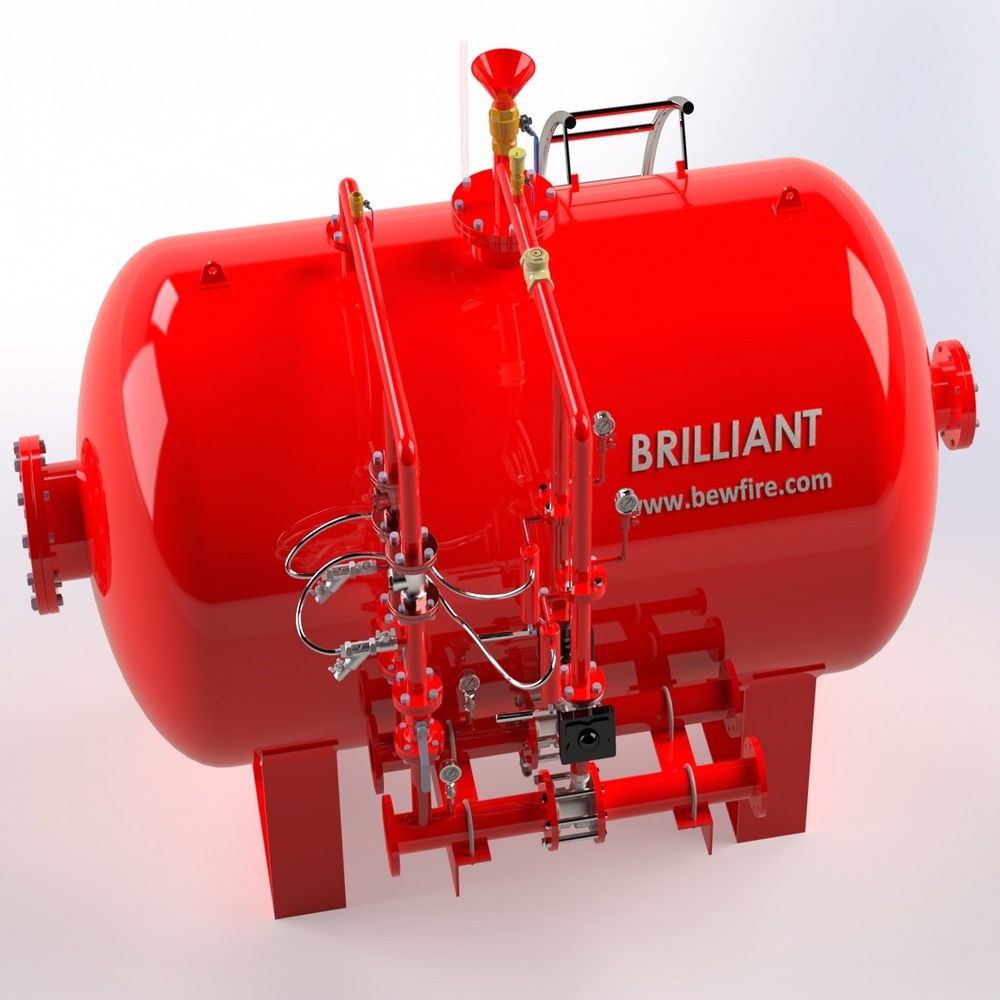

Horizontal Foam Bladder Tank with Multiple Ratio Controller
450000.00 INR/Piece
Product Details:
- Control Type Multiple Ratio Controller
- Coating Type Epoxy coated internal & external
- Working Temperature -10C to +55C Celsius (oC)
- Mounting Type Floor-mounted
- Energy Efficiency Rating Highly efficient system with minimal water/foam wastage
- Connectivity Type Flanged connections
- Fire Class A, B & C
- Click to View more
X
Horizontal Foam Bladder Tank with Multiple Ratio Controller Price And Quantity
- 450000.00 INR/Piece
- 10 Piece
Horizontal Foam Bladder Tank with Multiple Ratio Controller Product Specifications
- Multiple Ratio Controller
- 500 mm to 2000 mm (varies with tank size) Millimeter (mm)
- Flanged connections
- -10C to +55C Celsius (oC)
- Epoxy coated internal & external
- Floor-mounted
- Highly efficient system with minimal water/foam wastage
- 200 Ltr to 15000 Ltr Liter/day
- Brass
- Vertical, Floor-mounted
- A, B & C
- Vertical Cylindrical
- For Fire
- Stationary Foam Bladder Tank with Ratio Controller
- Corrosion resistant, Easy maintenance, High reliability, Quick foam discharge
- Up to 24000 LPM (liters per minute)
- Bladder Tank with In-line Balanced Pressure Proportioning
Horizontal Foam Bladder Tank with Multiple Ratio Controller Trade Information
- JNPT NHAWA SHEWA
- 10000 Piece Per Month
- 1 Days
- EXPORT QUALITY PACKING
- All India
- CE APPROVED , ISO
Product Description
Technical Specification :-ï
Tank Mounting Type
Horizontal or Vertical
ï
Foam Concentrate Capacity
For Vertical
140 to 7500 Litres
(36 to 2000 US GALLON)
ï
For Horizontal
140 to 15000 Litres
(36 to 4000 US GALLON)
ï
Working Pressure
ï
30 psi ( 2.1 bar ) to 175 psi ( 12 bar )
ï
Operating Temperature
2 degree to 50 degreE
ï
Factory Hydro Test Pressure
ï
As per ASME Code
Vessel Construction
ï
Carbon steel ASTM A 516 Gr. 70
Bladder
Buna-N
ï
External Piping
Water Side : Carbon Steel Seamless Pipe Sch. 40
Foam Concentrate Side : Stainless Steel SCH. 40
ï
ïMounting type: vertical, horizontal
Storage capacity: 200LTR TO 20000LTR
Following Rate: 16160L/S
Working pressure (Mpa) 0.612Mpa (6Bar to 12Bar (175PSI) )
Bladder: Buna -N with Nylon Reinforcement
Main parts: tank, bladder, external pipe, pressure proportional, vent and drain valve, foam concentrate
control valve, foam concentrate, level indicator, pressure gauge, safty valve.
Suitable for: Foam 3% and 6%
Fishing: Red Painted
Horizontal Bladder Tank-1000 Liters-80 NB Foam
Proportioner
ï
Foam Vessel made of C.S to SA-516 GR.70 designed and
fabricated to ASME SEC.VII DIV.1 for Working Pressure of
12 Kg/cm2 and Hydro-Tested to Pressure of 18 Kg/cm2.
Internally coated with two coats of Coal Tar Epoxy suitable
for seawater application and Externally Painted with
Corrosion Resistant Paint RAL 3000. Foam Bladder made
of Nylon Reinforced Nitrite Rubber. Foam Piping of SS 304
and Water Piping made of CS,ïwith 2 Nos. of 80 NB Foam Proportioner
along with 2 Nos. of 40 NB foam control Valve - SS 304.
